Square D
Price:
$9,350.00

Description

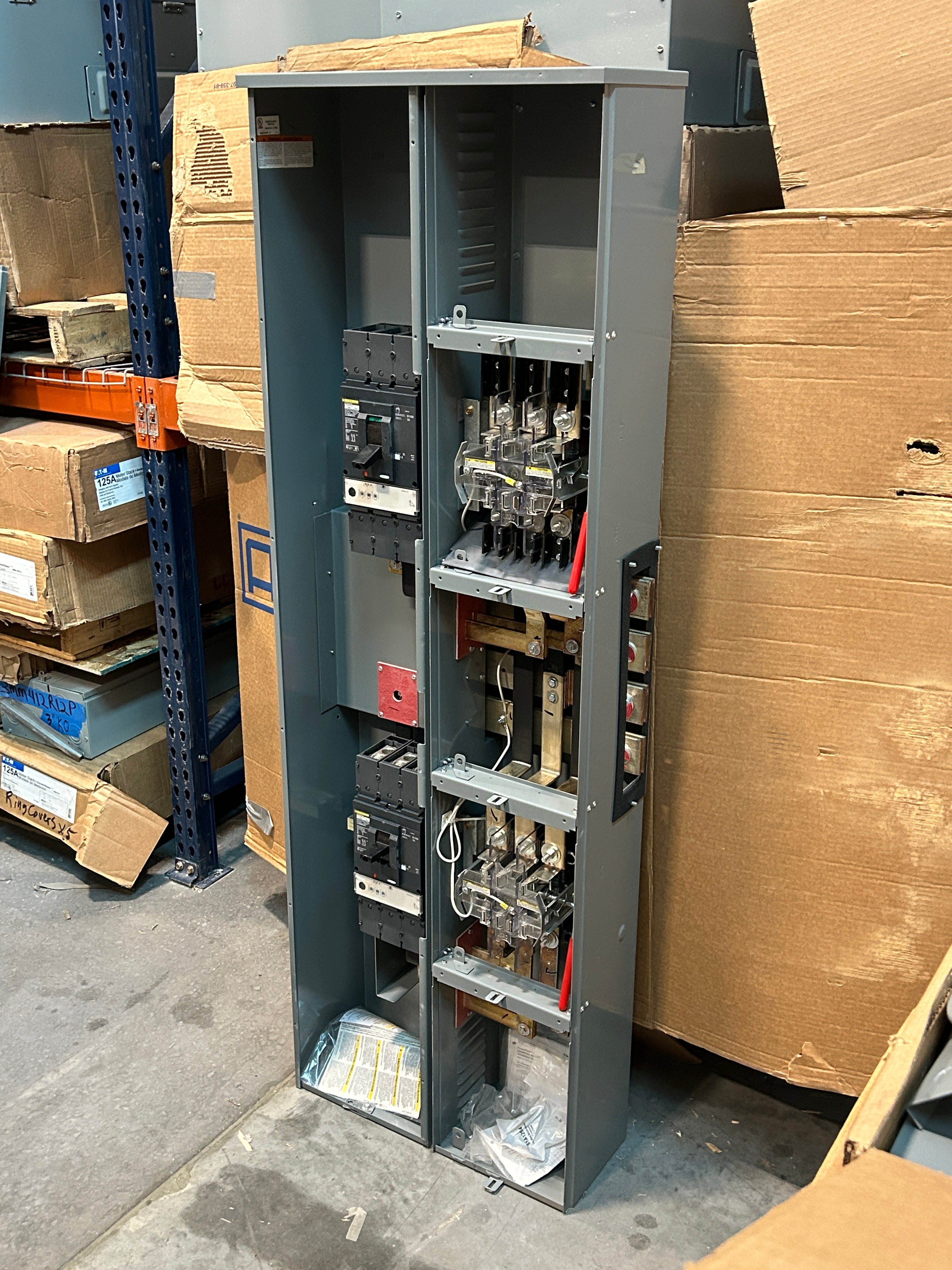

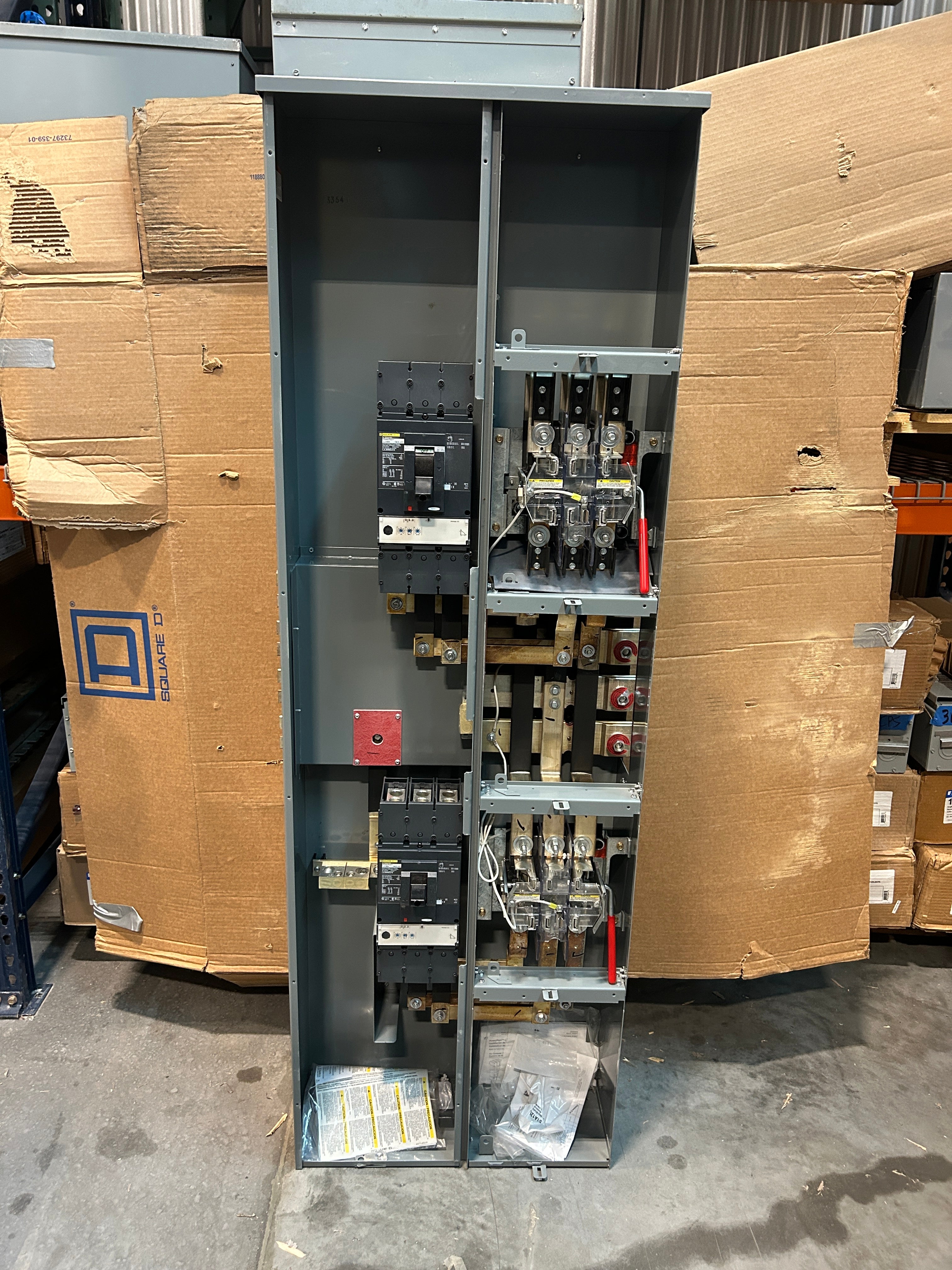

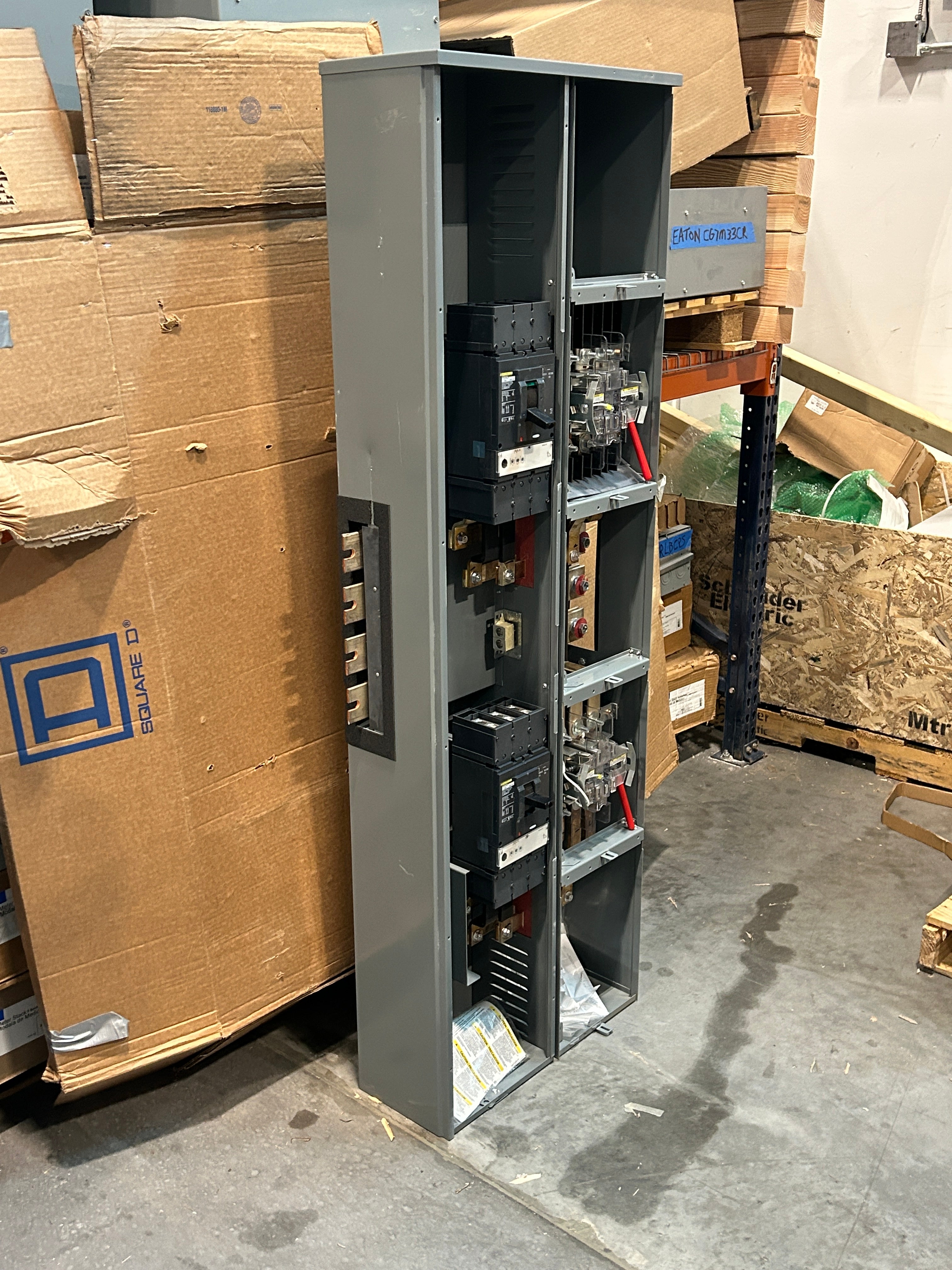

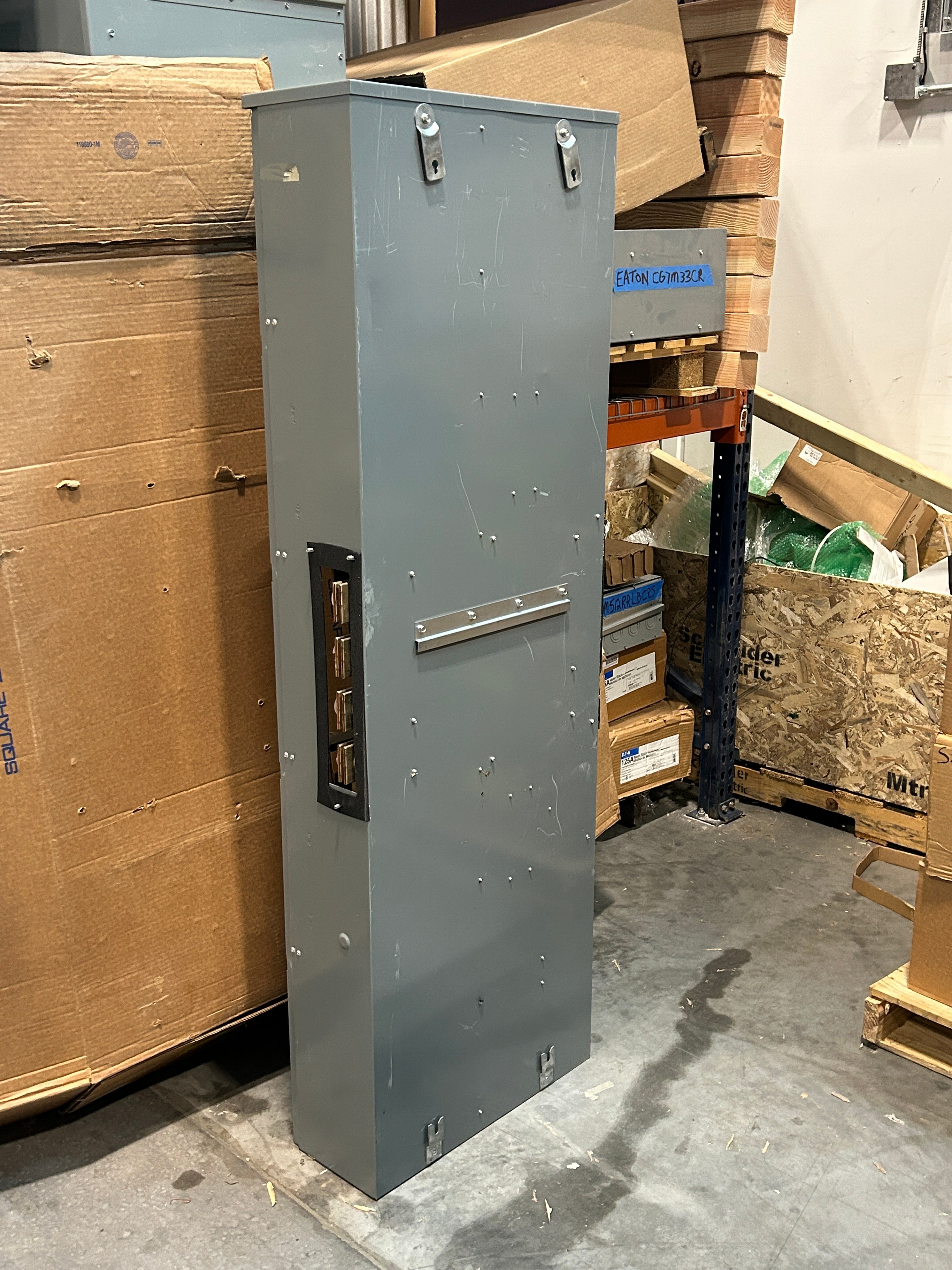

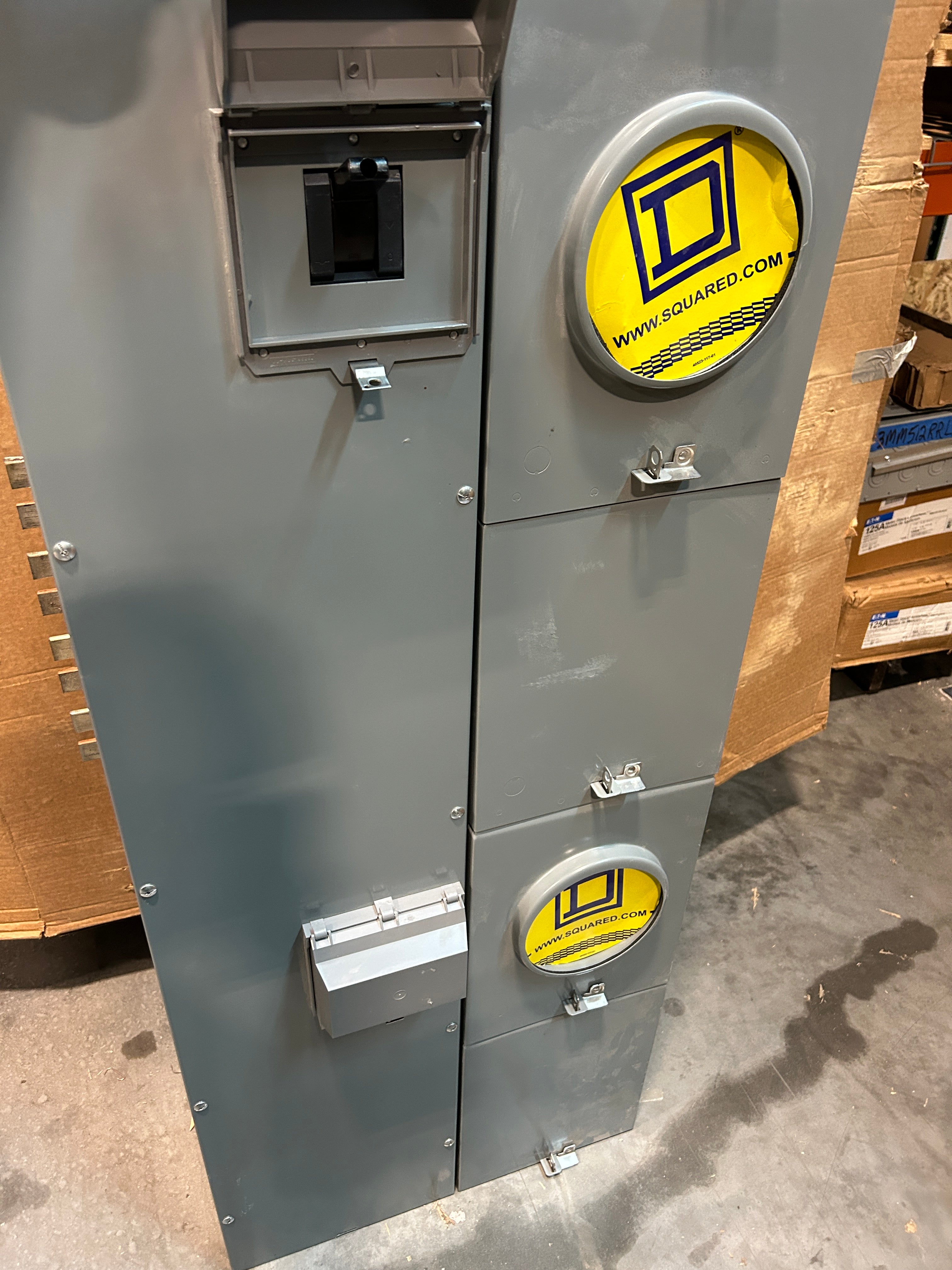

Square D EZML332400 Meter Stack
Three Phase In / Three Phase Out
2 Sockets / 2 Gang / 2 Position / 2 Meter
Socket Amperage 320A Continuous

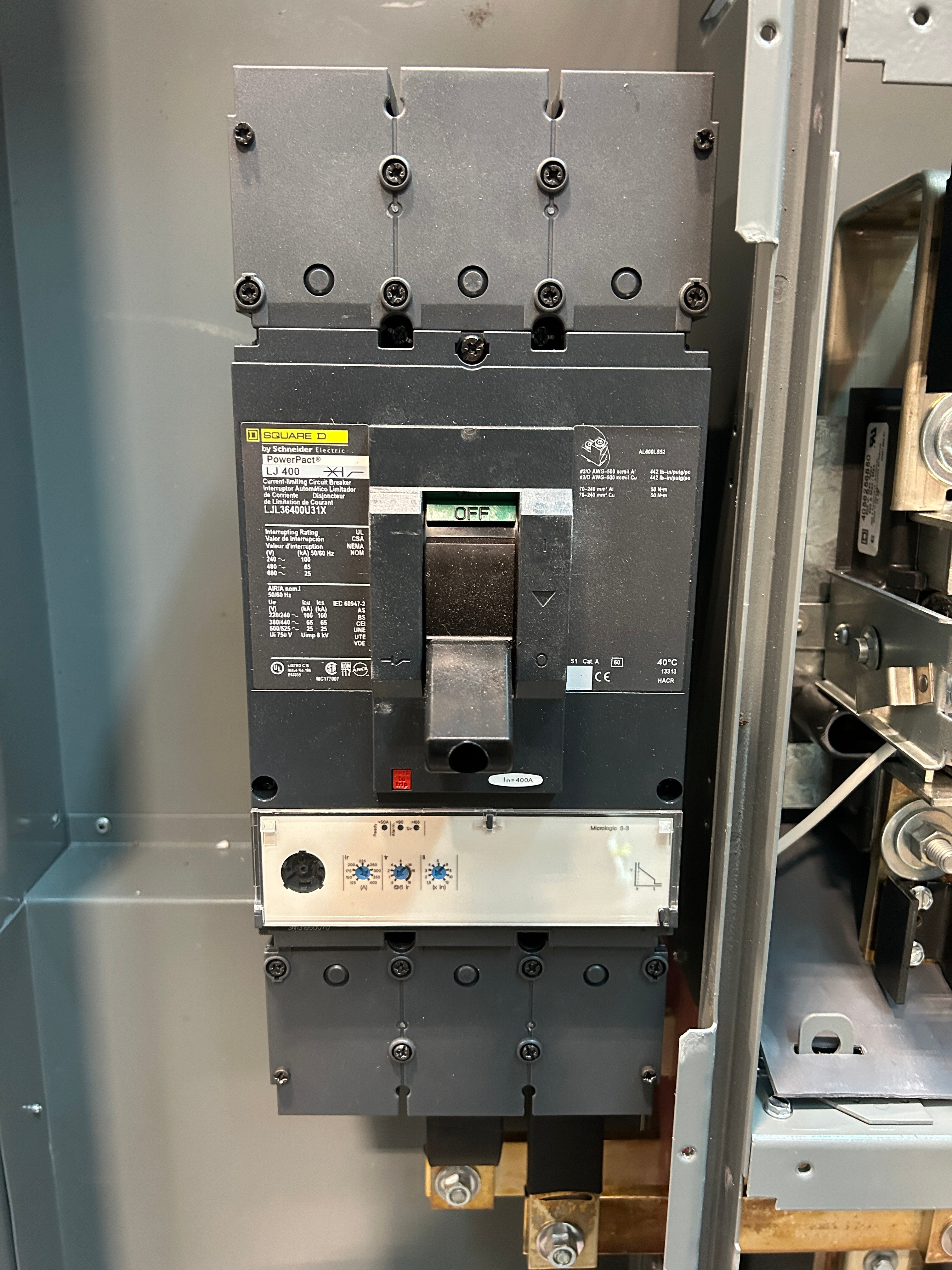

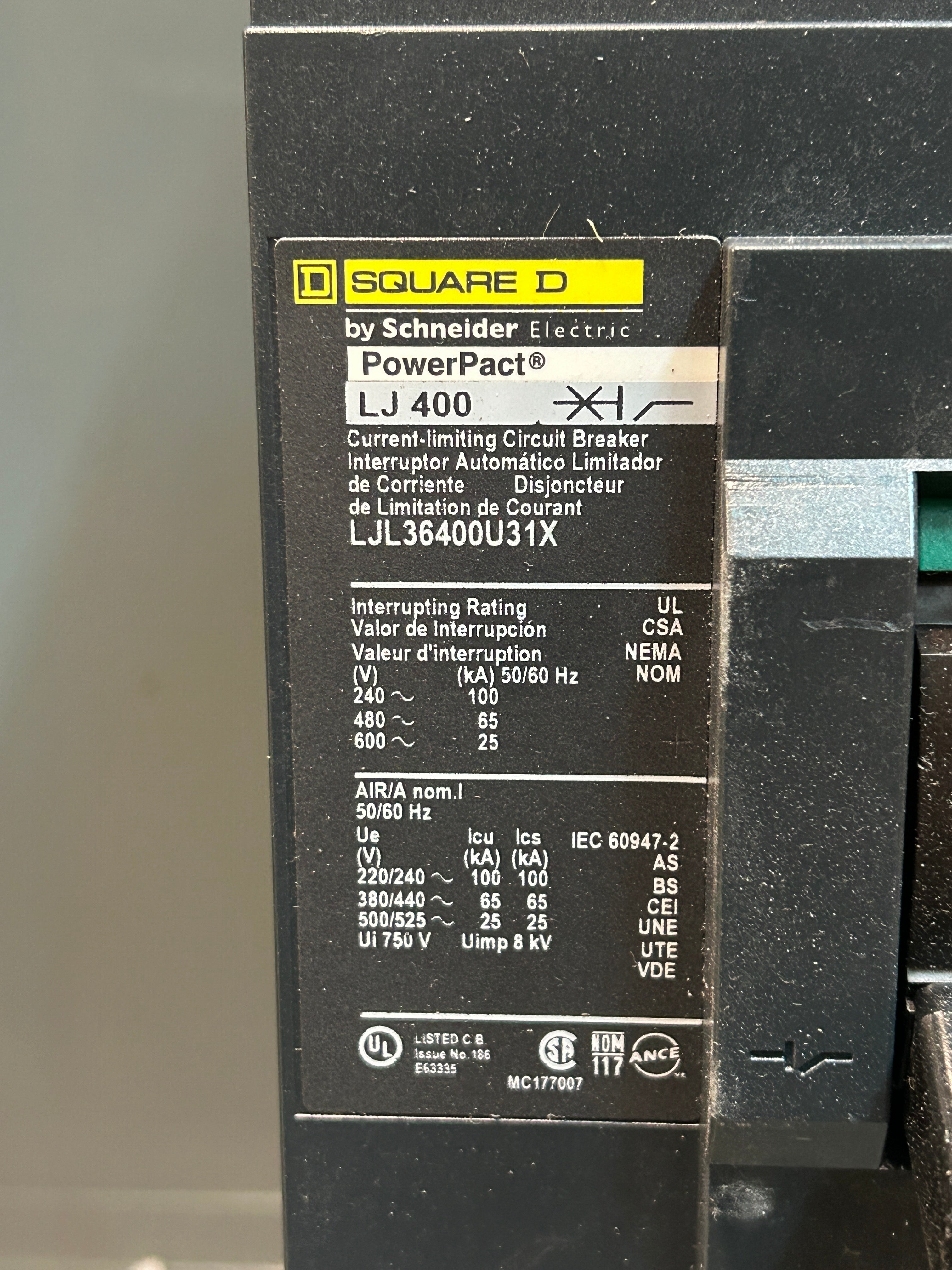

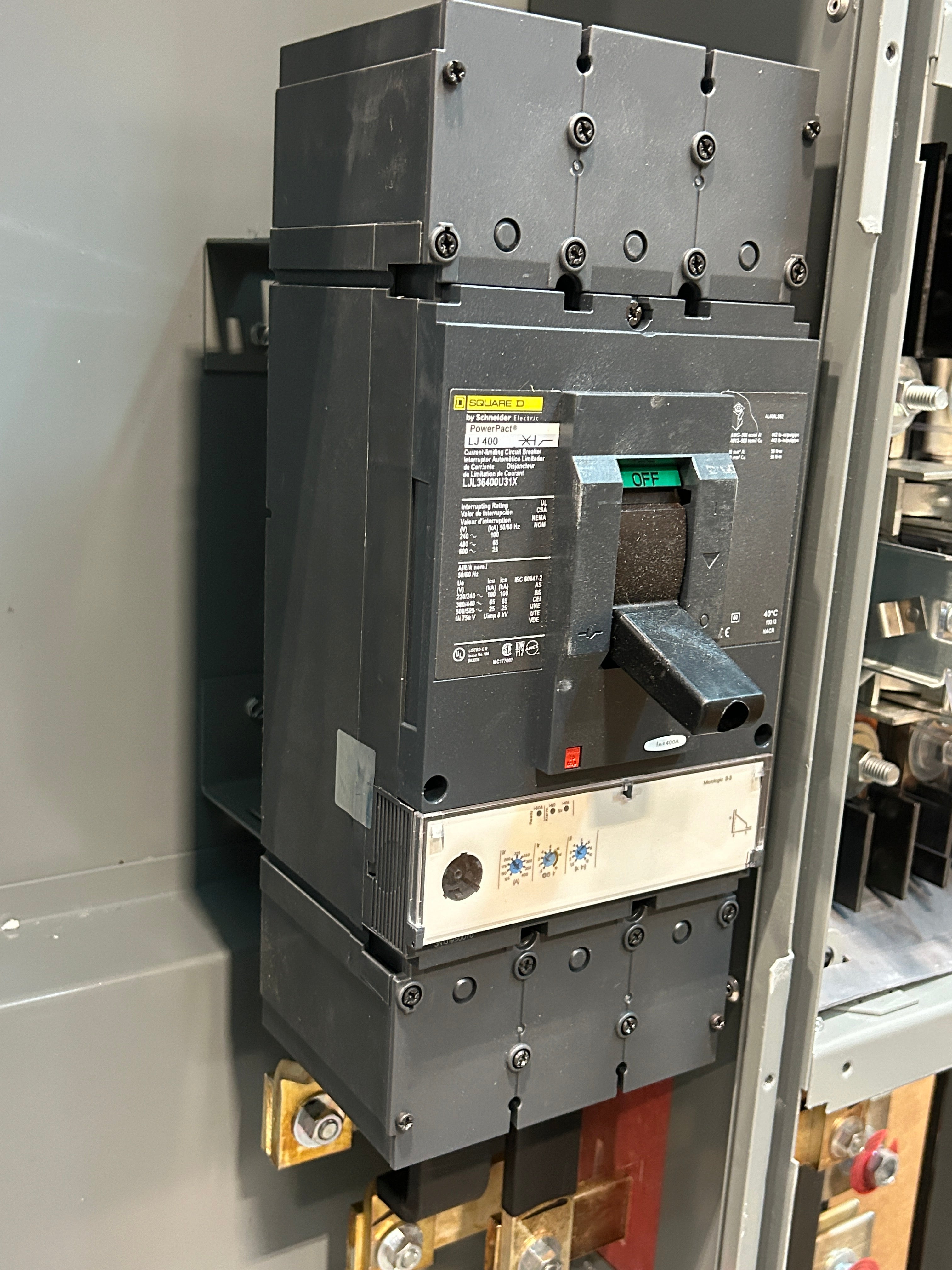

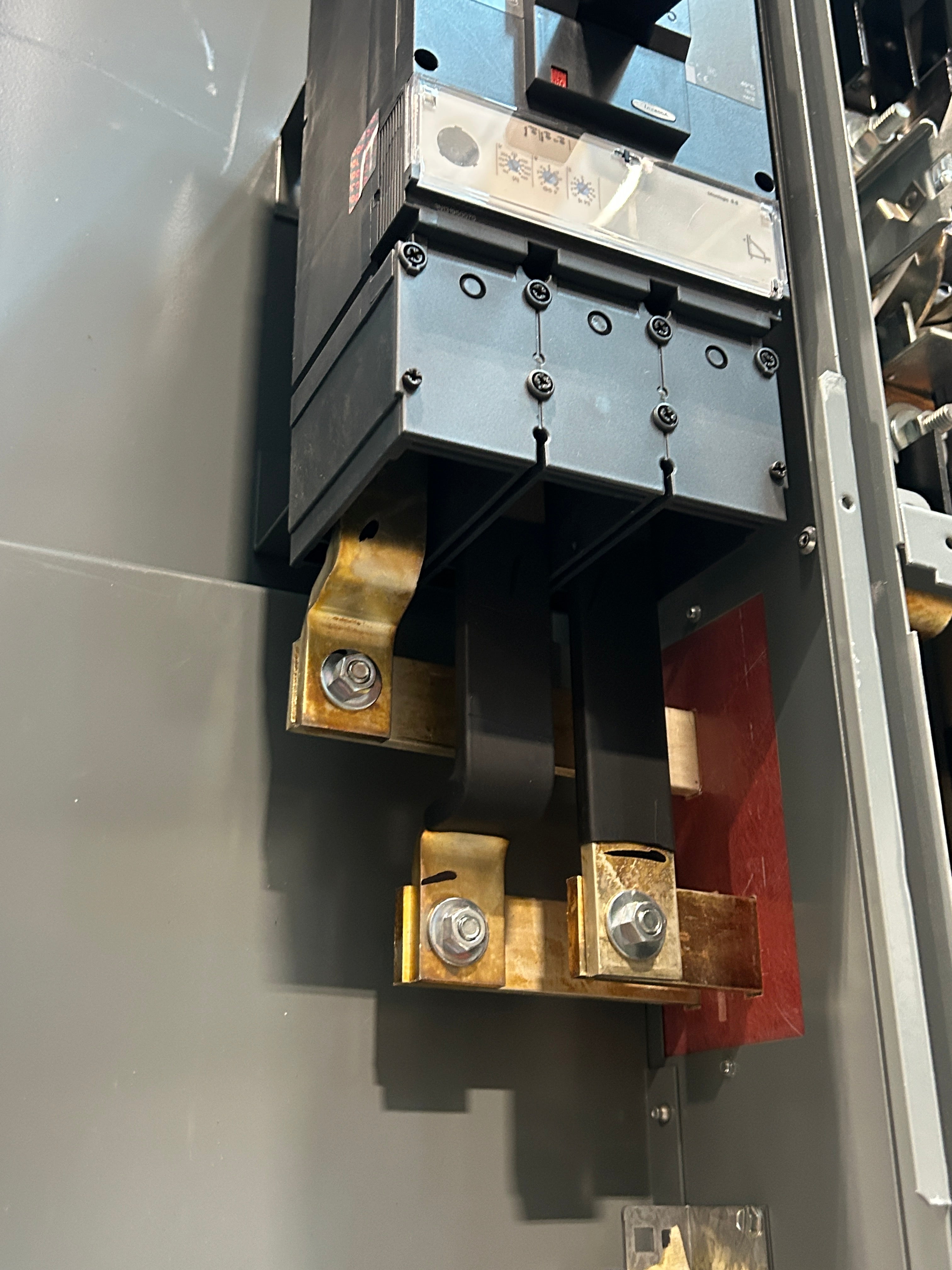

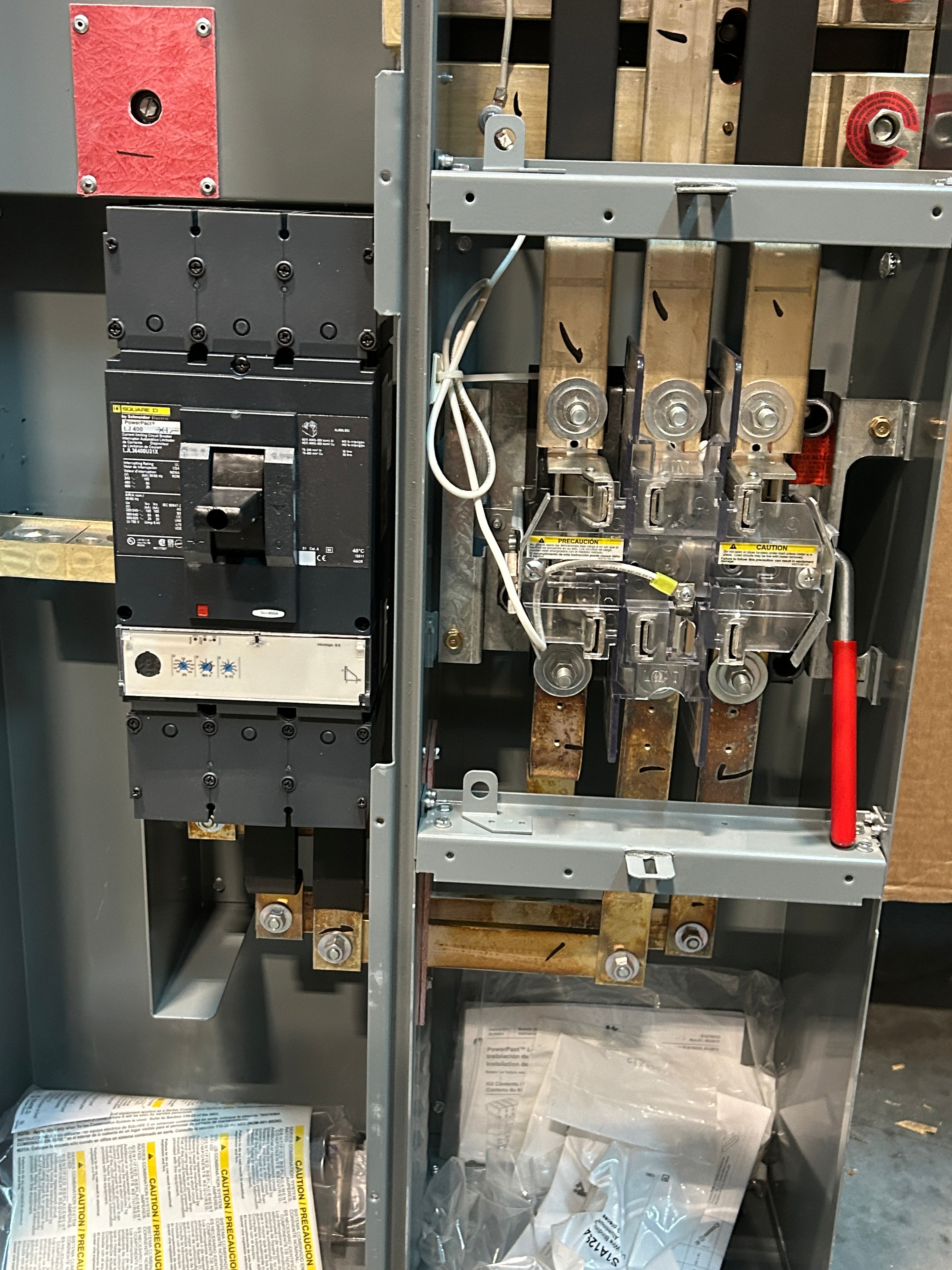

Factory Installed 400A PowerPact LJ 400 Tenant Breaker at Each Position (Field Adjustable From 125A to 400A)
System Type In: 3PH / 4-Wire , 240/120 VAC Delta or 208Y/120 VAC
Service Provided Out: 3PH / 4-Wire , 240/120 VAC Delta or 208Y/120 VAC

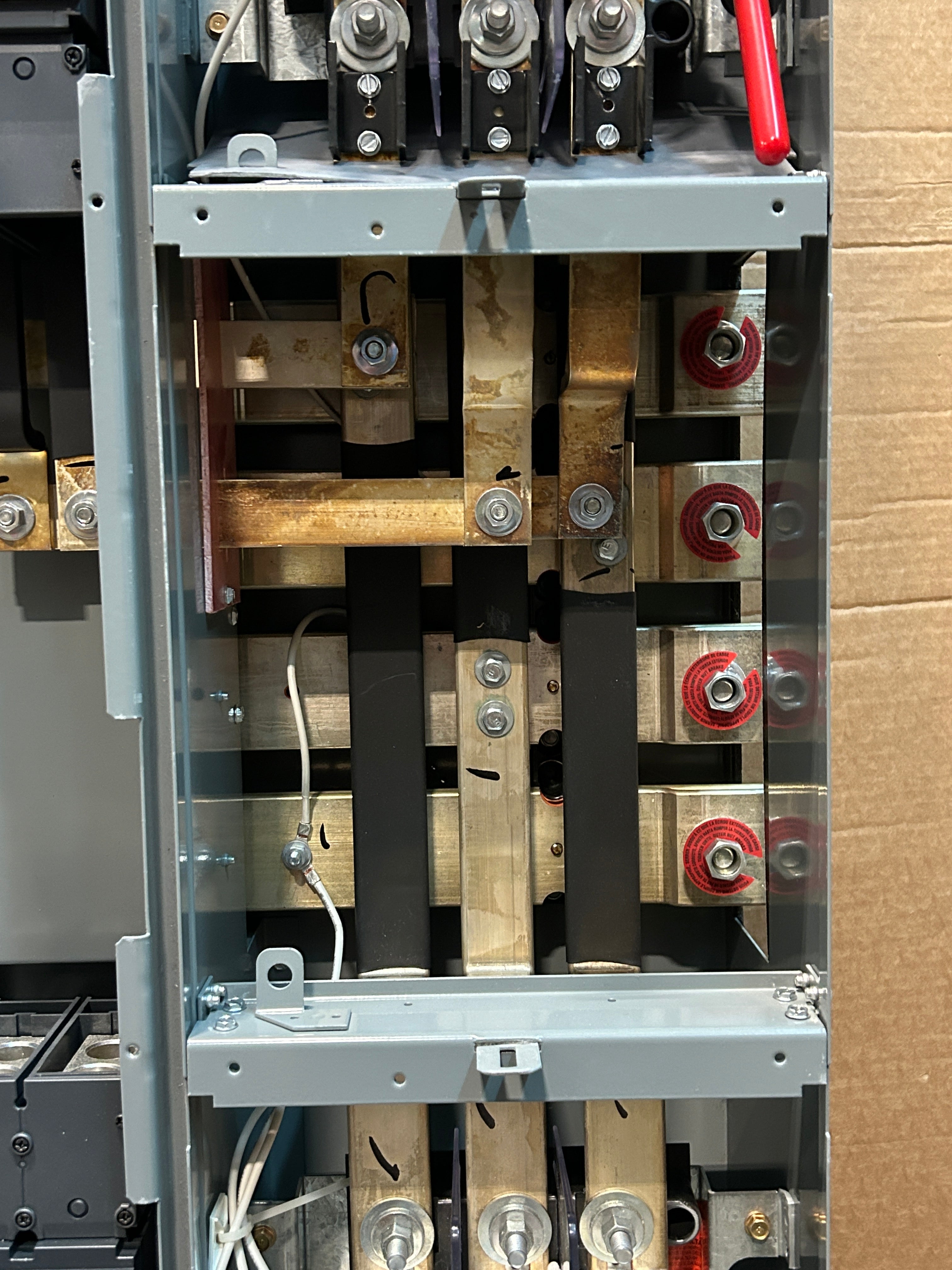

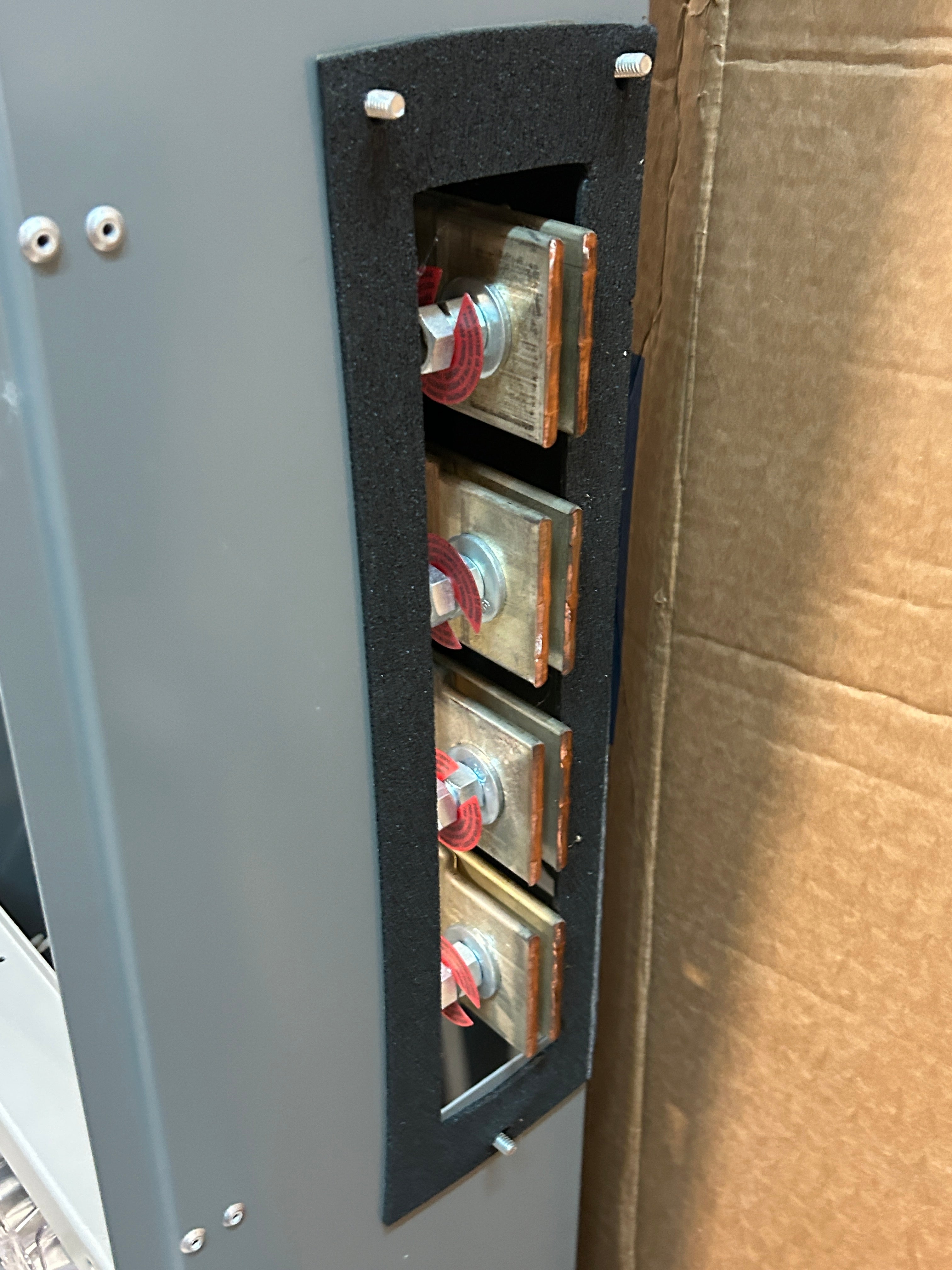

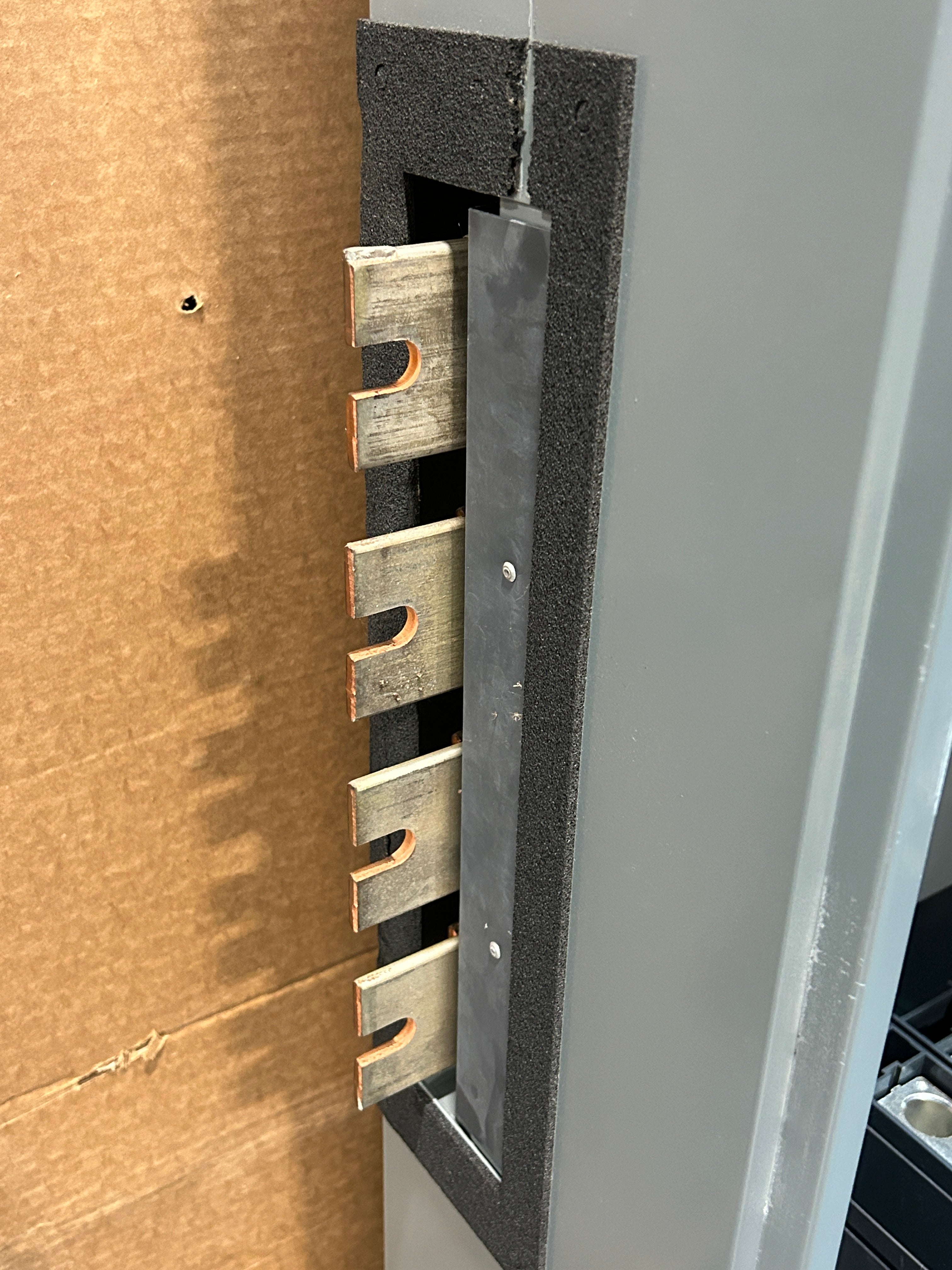

Bus Rating 1200A
Copper Busbar Material
Voltage Rating 120/208V
65kAIC at 240/120 VAC Delta
100kAIC at 208Y/120 VAC
4-Wire

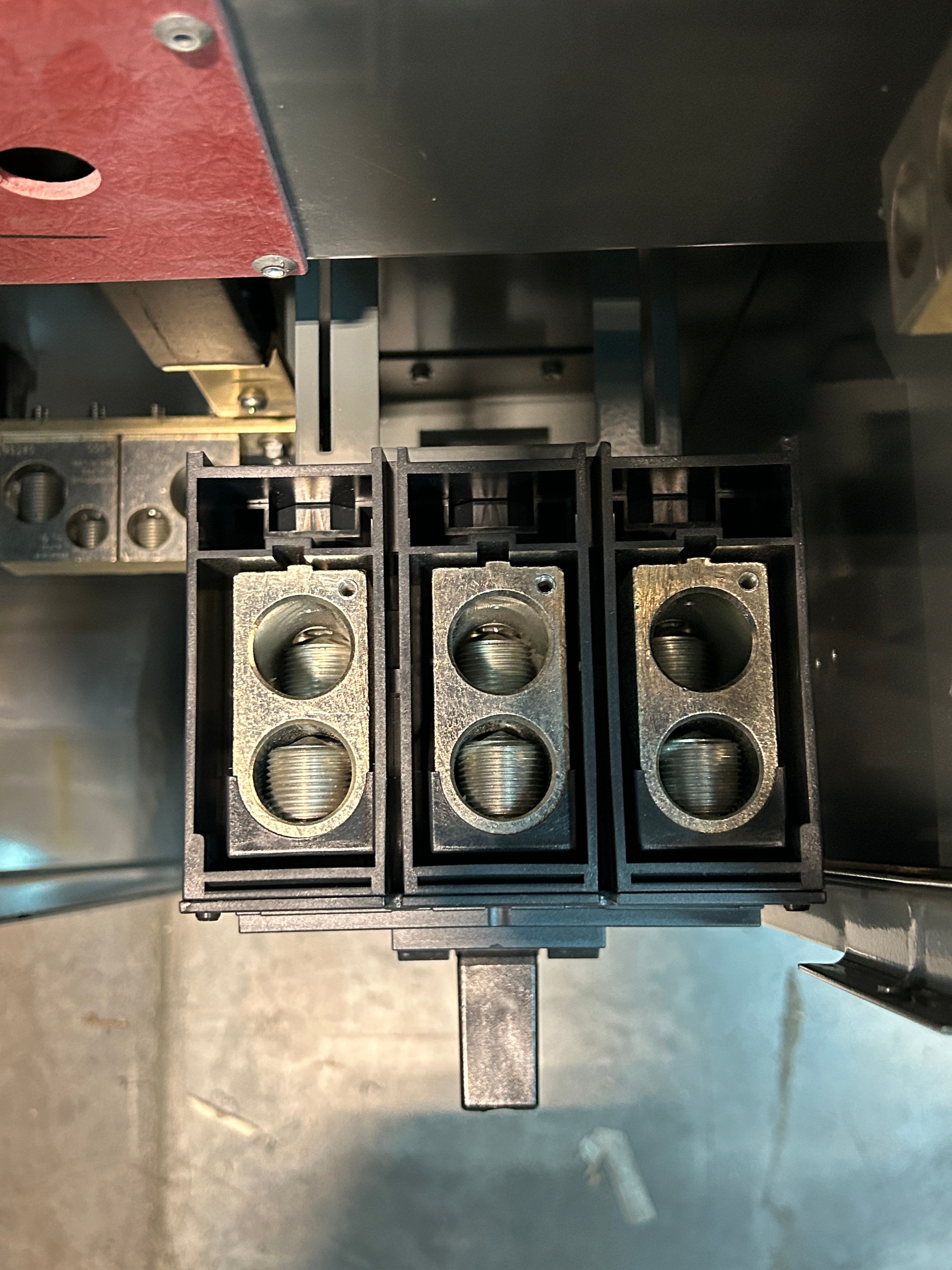

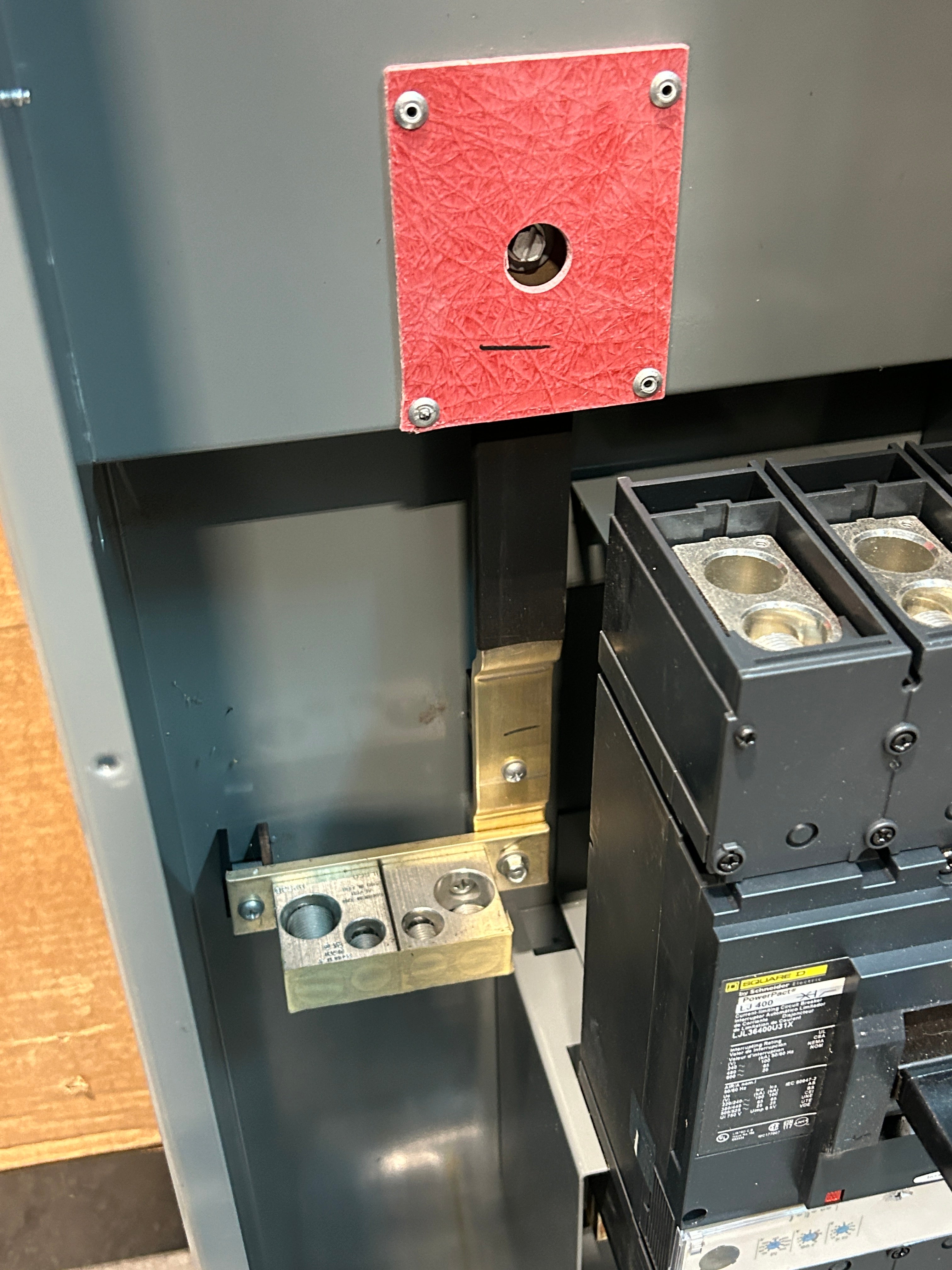

Neutral and Service Ground Wire Range: #1/0 - 600KCMIL CU/AL to (2) #1/0 - 250 CU/AL
Equipment Ground Lug Wire Range: #4 - 300 CU/AL

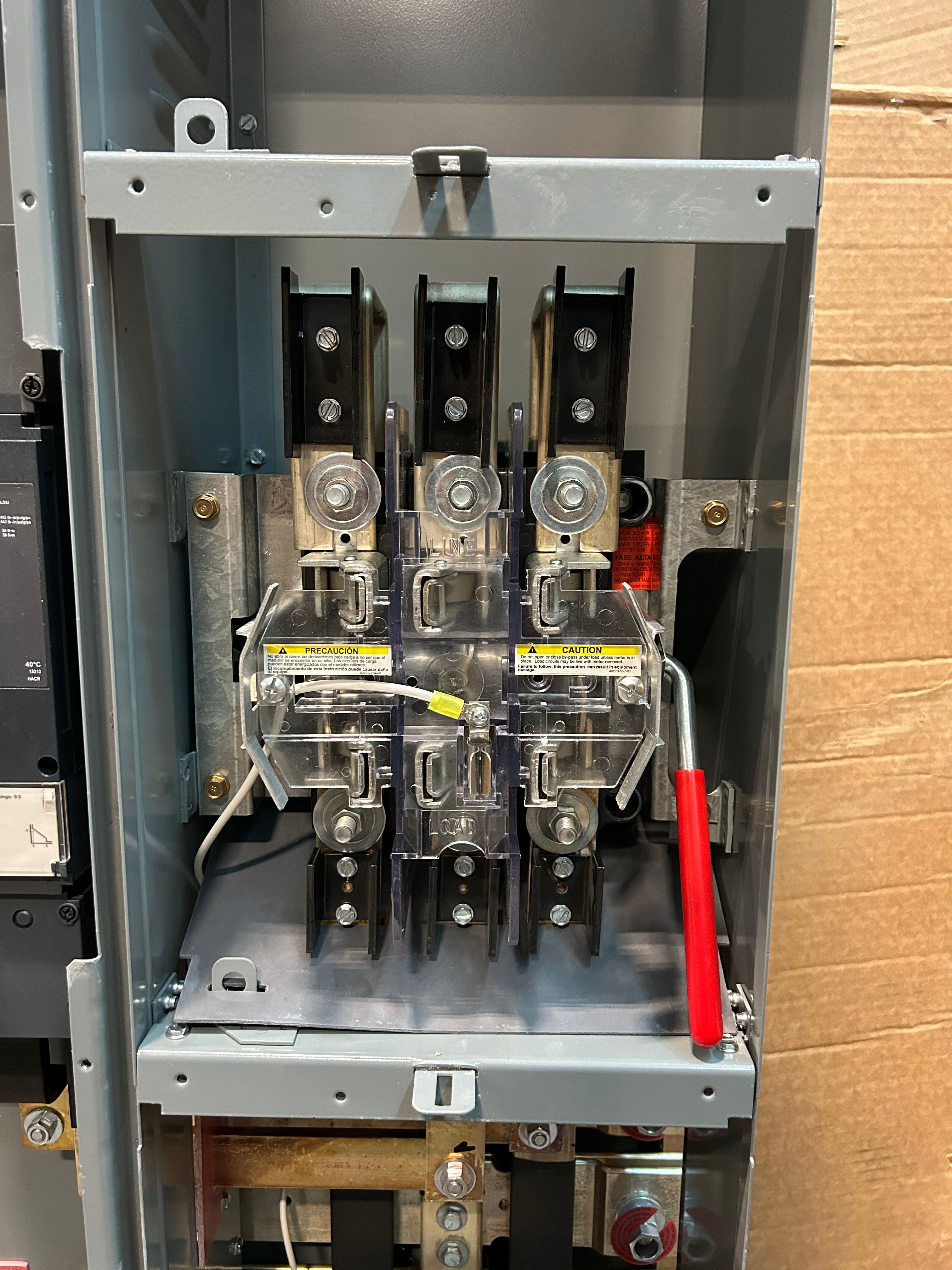

7 Jaw w/Jaw Release

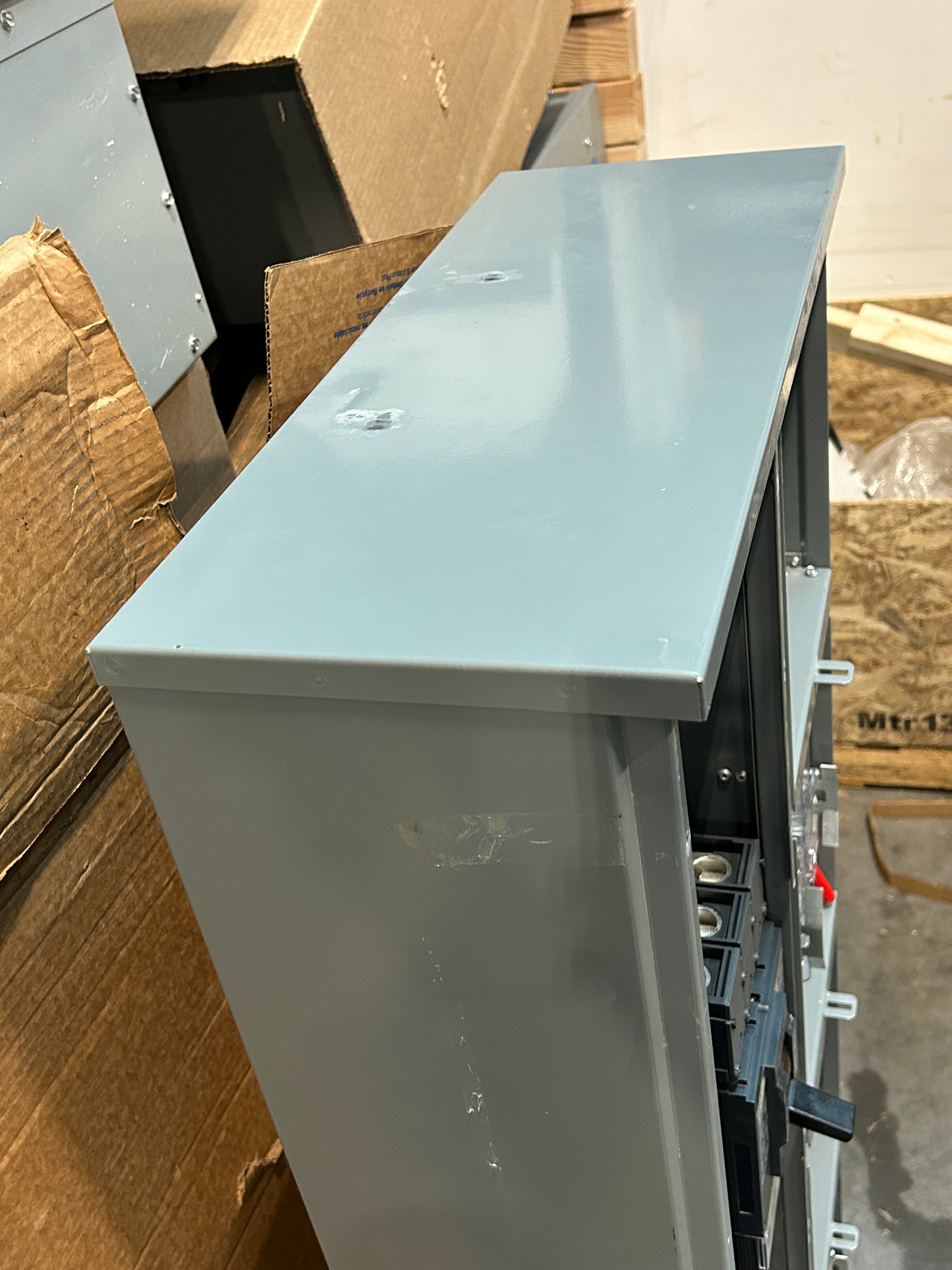

Nema 3R Enclosure
Suitable for Use as Service Equipment
Lever Bypass
Ringless

*** SHIPPING RATE TO BE CALCULATED BASED ON DELIVERY ZIPCODE. ACTUAL SHIPPING RATE WILL BE PRESENTED TO BUYER BEFORE FINALIZING ORDER. ***
