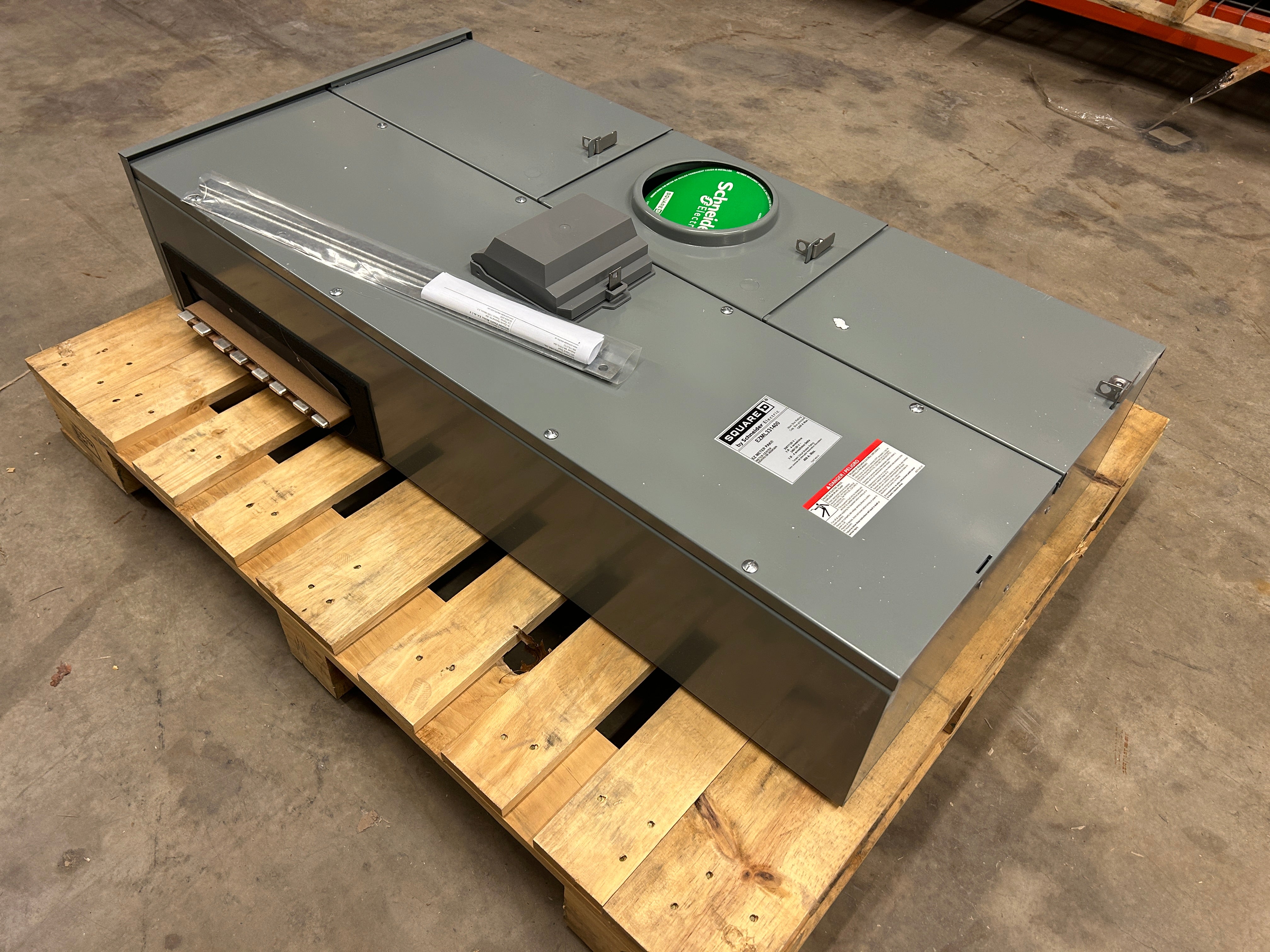

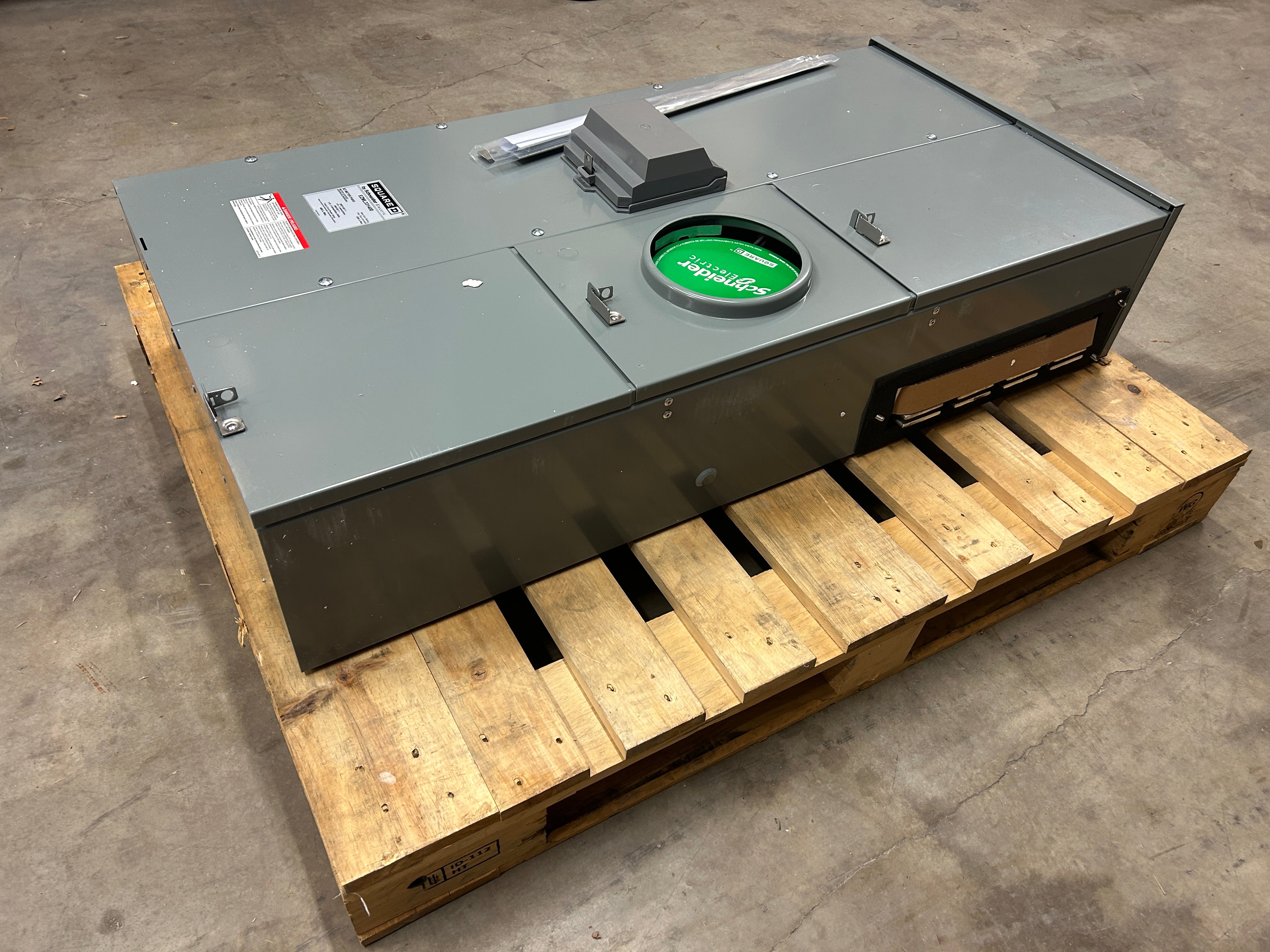

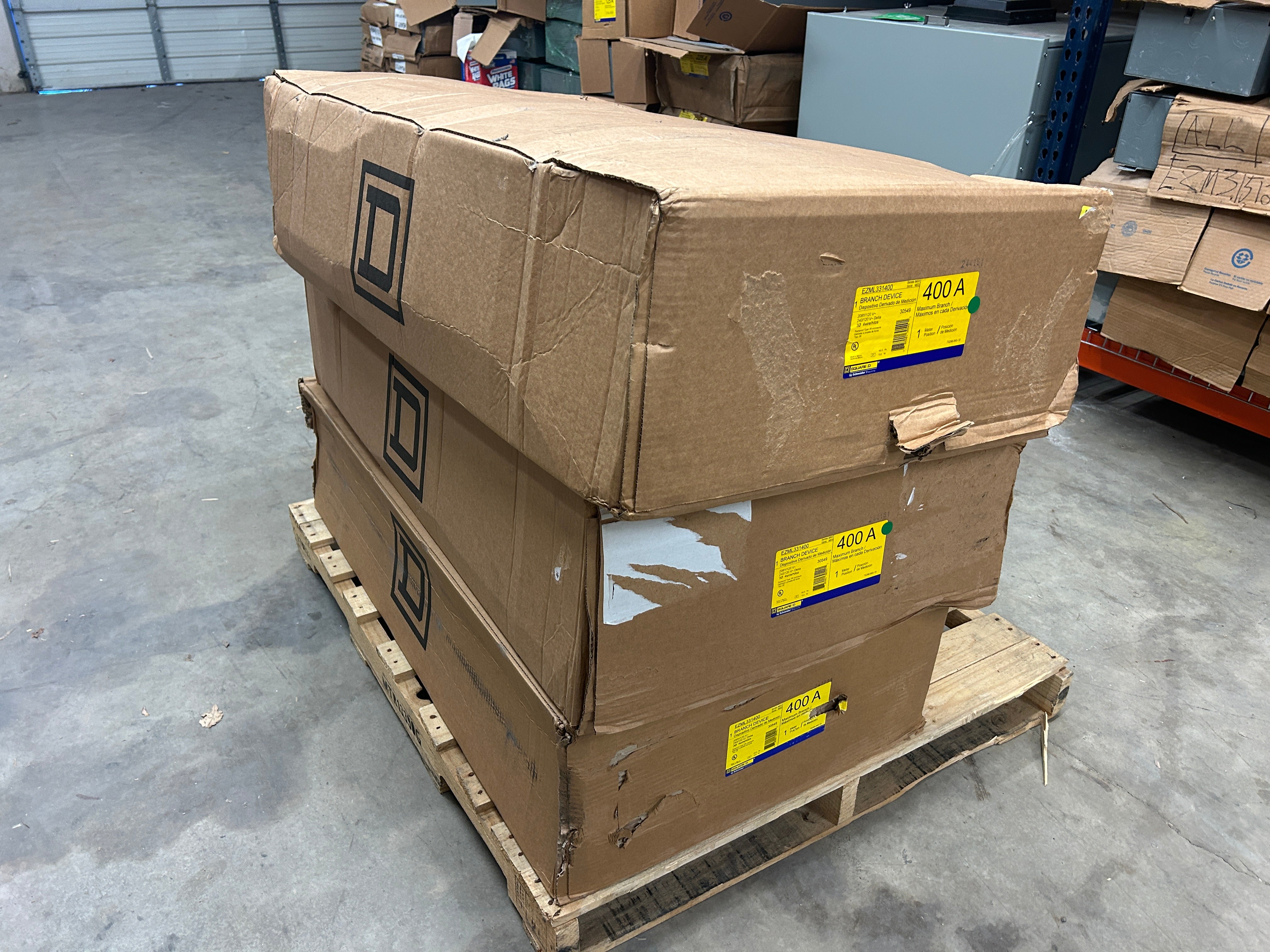

Square D EZML331400 3PH In / 3PH Out 1 Gang Ringless Lever Bypass 400A Factory Installed Breaker at Each Socket Meter Stack

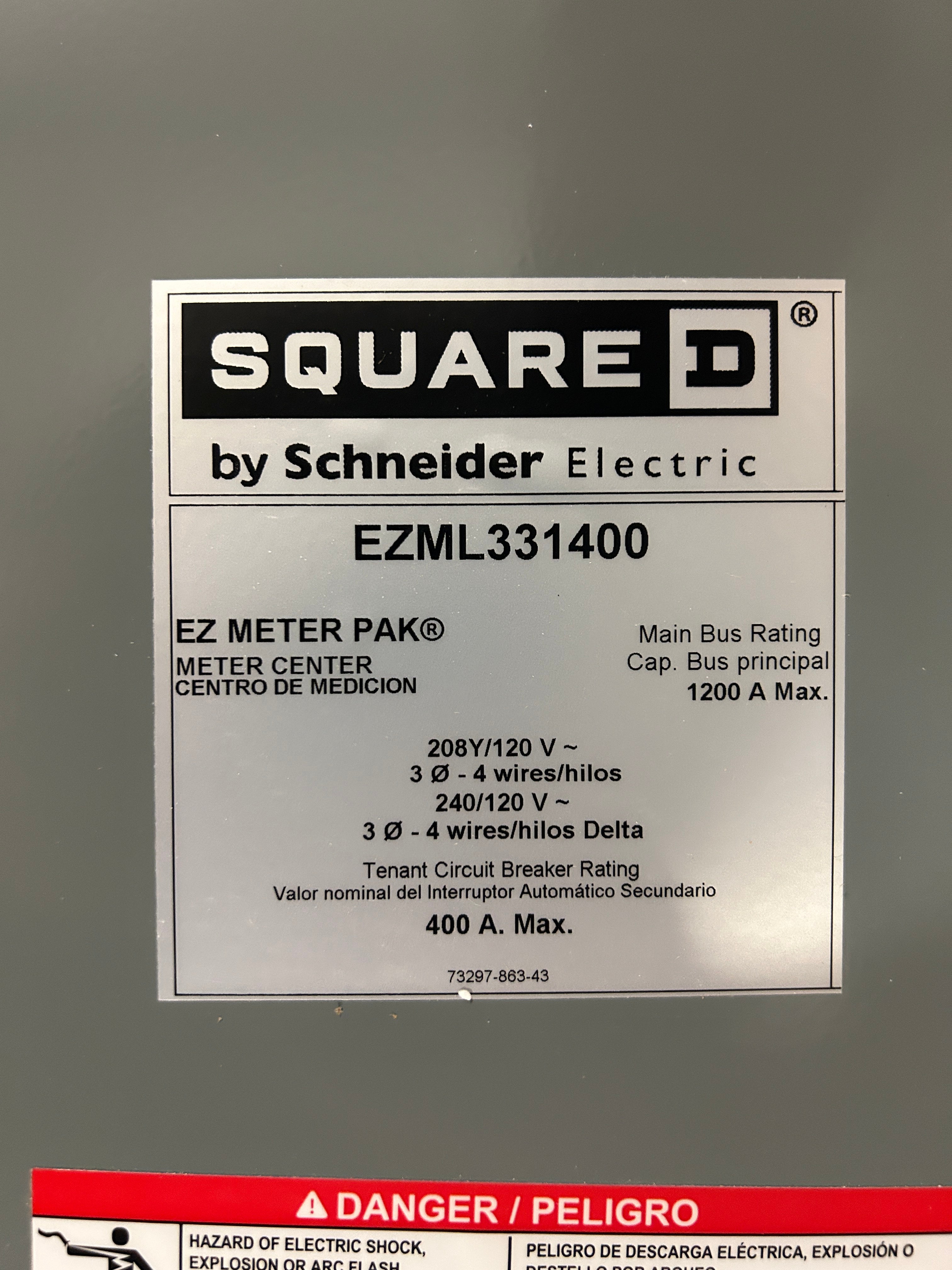

Square D EZML331400 Meter Stack
Three Phase In / Three Phase Out
1 Socket / 1 Gang / 1 Position / 1 Meter
Socket Amperage 320A Continuous

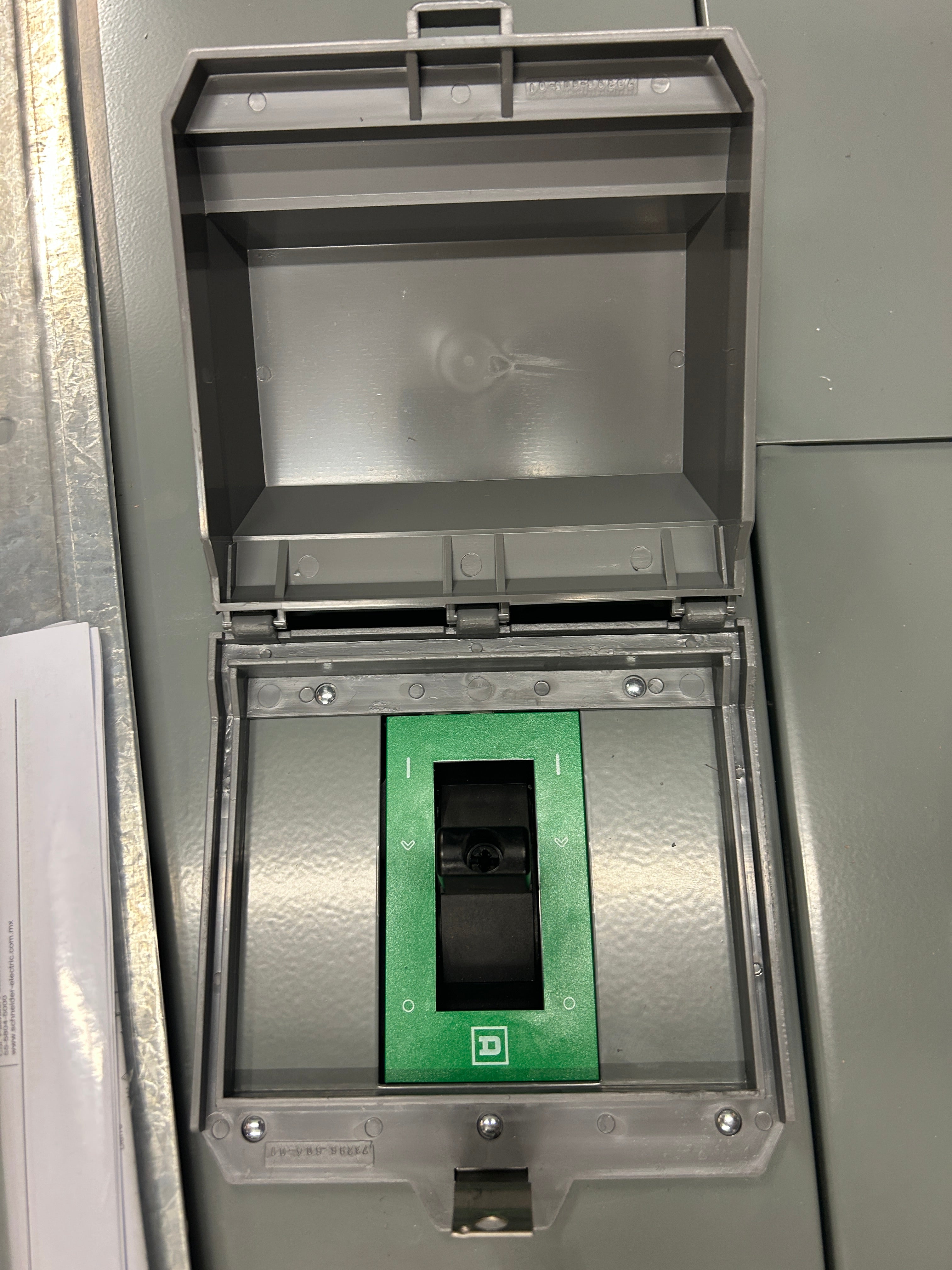

Factory Installed 400A PowerPact LJ 400 Tenant Breaker (Field Adjustable From 125A to 400A)
System Type In: 3PH / 4-Wire , 240/120 VAC Delta or 208Y/120 VAC
Service Provided Out: 3PH / 4-Wire , 240/120 VAC Delta or 208Y/120 VAC
Bus Rating 1200A
Copper Busbar Material
Voltage Rating 120/208V
65kAIC at 240/120 VAC Delta
100kAIC at 208Y/120 VAC
4-Wire
Neutral and Service Ground Wire Range: #1/0 - 600KCMIL CU/AL to (2) #1/0 - 250 CU/AL
Equipment Ground Lug Wire Range: #4 - 300 CU/AL

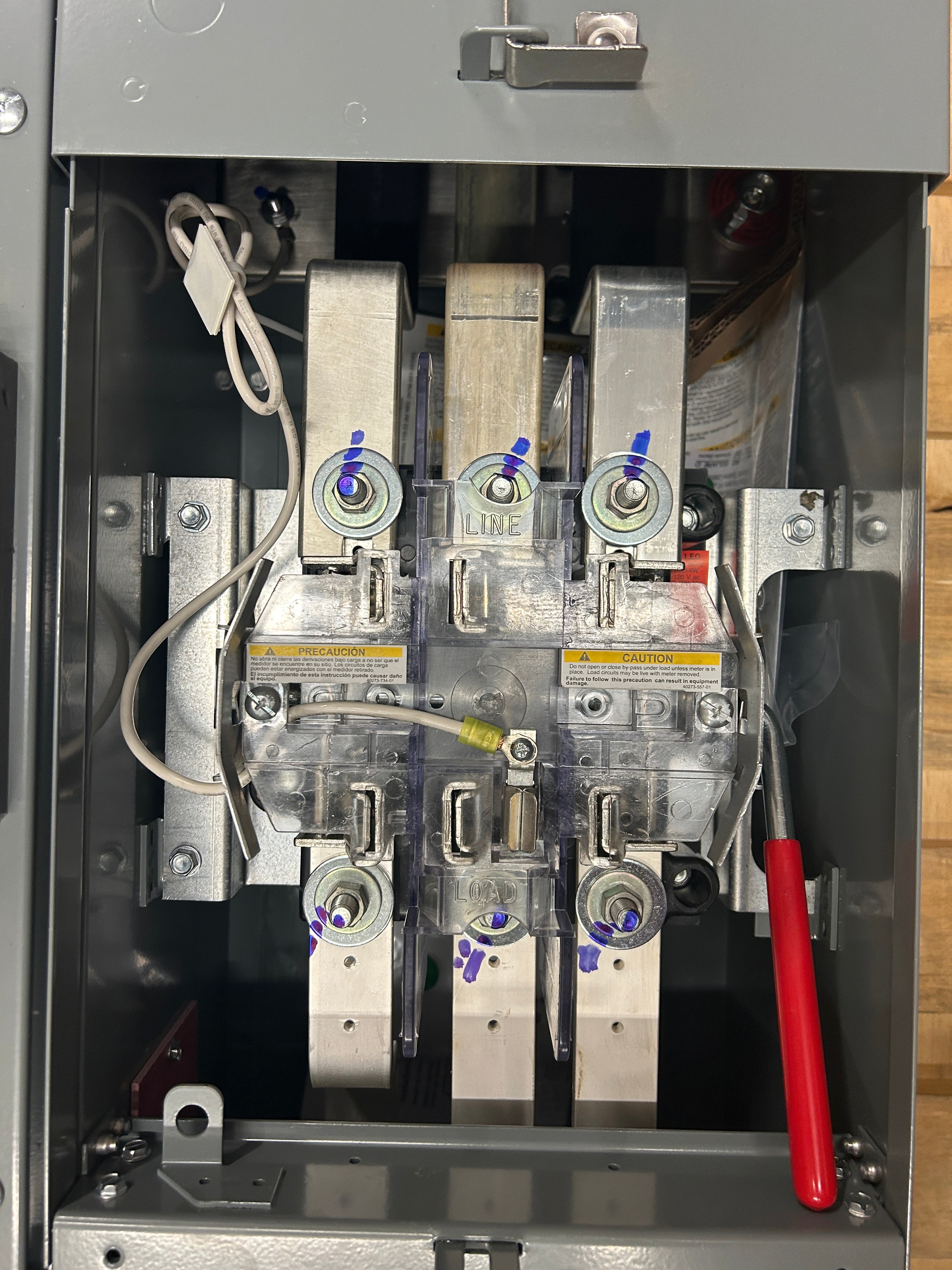

7 Jaw w/Jaw Release
Nema 3R Enclosure
Suitable for Use as Service Equipment
Lever Bypass
Ringless
